EWF Series(Standard type with safety device)
Catalog Manual/CADFeatures
- Its capacity is 4.5kg-120kg.
- The balancer of this series is equipped with safety features that are same as the EWS series. It also has a gauge for adjustment with respect to the suspended mass. Therefore, tension adjustment can be performed easily.
- For suspending electrical devices, jigs, tools, and materials for processed goods.
- Centering operations. Balancing device for various kinds of equipment.

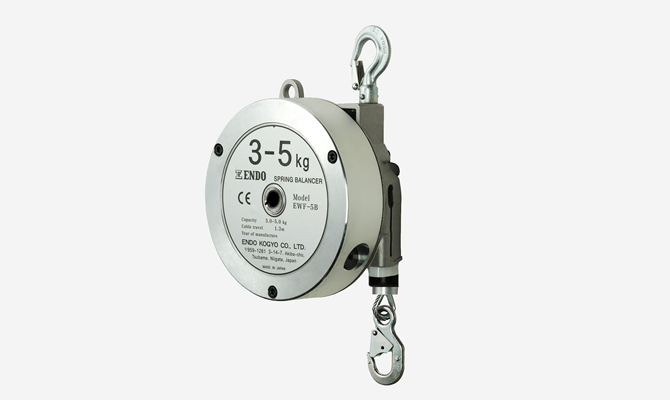

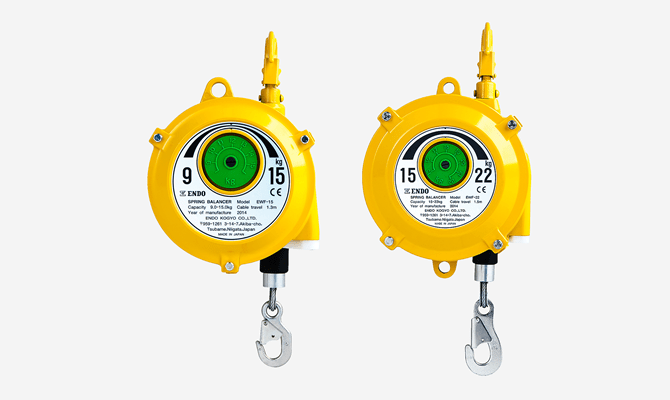

Gallery
EWF Series
EWF Series
EWF Series
Tension Adjustment Method
Specifications
| Model | Capacity (kg) |
Stroke (m) |
Wire rope diameter (mm) |
Mass (kg) |
How to adjust spring tension |
Fall arrest device |
Drum lock device |
|---|---|---|---|---|---|---|---|
| EWF-9 | 4.5～9.0 | 1.3 | 4.0 | 3.5 | Worm | 〇 | 〇 |
| EWF-15 | 9.0～15.0 | 1.3 | 4.0 | 3.8 | 〇 | 〇 | |
| EWF-22 | 15.0～22.0 | 1.5 | 4.76 | 7.3 | 〇 | 〇 | |
| EWF-30 | 22.0～30.0 | 1.5 | 4.76 | 7.7 | 〇 | 〇 | |
| EWF-40 | 30.0～40.0 | 1.5 | 4.76 | 9.7 | 〇 | 〇 | |
| EWF-50 | 40.0～50.0 | 1.5 | 4.76 | 10.1 | 〇 | 〇 | |
| EWF-60 | 50.0～60.0 | 1.5 | 4.76 | 11.1 | 〇 | 〇 | |
| EWF-70 | 60.0～70.0 | 1.5 | 4.76 | 11.4 | 〇 | 〇 | |
| EWF-90 | 70.0～90.0 | 2.0 | 4.76 | 21.9 | 〇 | 〇 | |
| EWF-105 | 85.0～105.0 | 2.0 | 4.76 | 24.0 | 〇 | 〇 | |
| EWF-120 | 100.0～120.0 | 2.0 | 4.76 | 27.5 | 〇 | 〇 |
Optional Accessories
Plain trolly
When attached to a beam, this trolley enables smooth horizontal movement by hand.
Plain trolly detail page
