Reel

A Reel is a winding machine that automatically winds up and pulls out a power supply cable for a moving object or fluid hose following the motion of a moving object.*1

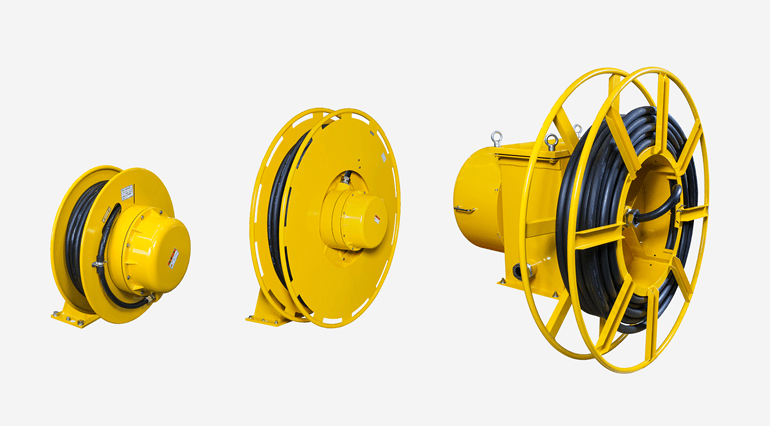

Cable reels support various cables including low and high voltage cables, fiber optic cables, and combinations of these cables.
Hose reels are suitable for a variety of fluids including air, water, and hydraulic oil.
There are two categories of winding power: spring or motor types. Various types of motors are available, including torque, inverter control, servo, or hydraulic motors. You can select the best type based on the applications, winding lengths, types, and other requirements. Lightweight reels and small-size reels can be produced as special specifications.
*1. Manual pull-out type is also available for the hose reels.

Applications

• Transfer devices such as traveling
   cranes and cart.

• Lifting magnets and lifting equipment
  (hoists).

• General industrial machines and ships.

• Shaft-boring and shield machines.

Advantages

• Features a simple structure that
   facilitates wiring and tubing.

• Reduces the number of maintenance
   procedures.

• Tracks the winding speed extremely
   closely, preventing damage to the
   cables and hoses.

• Rainproof structure of the slip ring
   allows outdoor installation.*2

*2. Type CRF and geared motor type
       must be installed indoors.

Cable Reel

Spring Type


This type of reel utilizes the spring tension as the winding power source. It reduces the cost and enables automatic winding.

Motor Type

This type of reel is equipped with a motor as the winding power source. It supports a wide range of specifications including long stroke, high-speed winding, and heavy use. Models that enhance energy efficiency and a longer cable lifetime are also available.

Hose Reel

Spring Type


This type of reel utilizes the spring tension as the winding power source. It supports various kinds of fluids, pressures, and applications.

Motor Type

This type of reel is equipped with a motor as the winding power source. It supports a wide range of specifications including large diameter hoses and heavy use. We manufacture products that are best suited for your applications.
