RSB Series(Ratchet type )
Catalog Manual/CADFeatures
- Its capacity is 9kg-40kg.
- With the ratchet mechanism, you can stop the wire rope at any position even when the balancer is not loaded.
- When suspended loads are exchanged frequently.
- For suspending washed objects.
Gallery
RSB Series

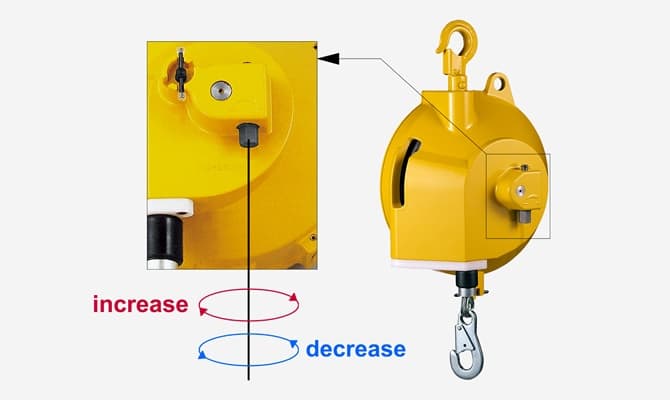

Tension Adjustment Method
Specifications
| Model | Capacity (kg) |
Stroke (m) |
Wire rope diameter (mm) |
Mass (kg) |
How to adjust spring tension |
Fall arrest device |
Drum lock device |
|---|---|---|---|---|---|---|---|
| RSB-15 | 9.0～15.0 | 1.5 | 5.0 | 7.4 | Worm | 〇 | － |
| RSB-22 | 15.0～22.0 | 1.5 | 5.0 | 7.7 | 〇 | － | |
| RSB-30 | 22.0～30.0 | 1.5 | 5.0 | 8.1 | 〇 | － | |
| RSB-40 | 30.0～40.0 | 1.5 | 5.0 | 8.5 | 〇 | － |
Optional Accessories
Plain trolly
When attached to a beam, this trolley enables smooth horizontal movement by hand.
