EWS Series(Standard type with safety device)
Catalog Manual/CADFeatures
- Its capacity is 1.5kg-7kg.
- The exposed part of the drum is reduced as much as possible to ensure worker safety.
- The fall-arrest device prevents a suspended object from dropping even in the unlikely event that the spring breaks.
Gallery

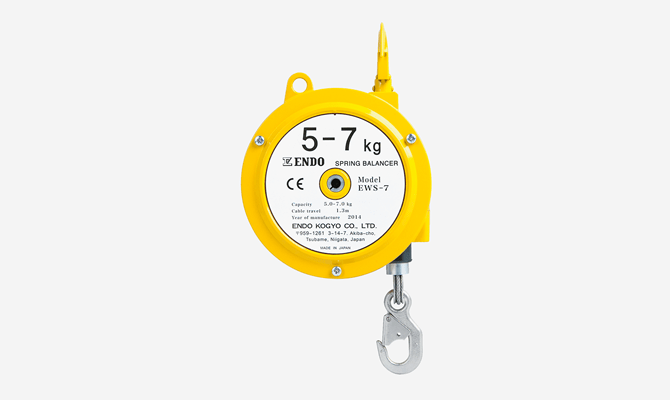

EWS Series
EWS Series

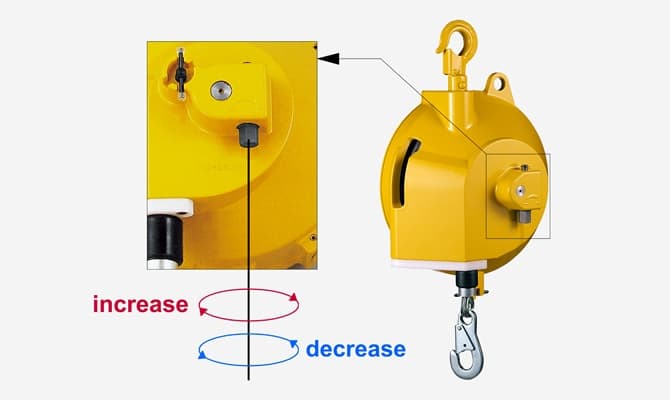

Tension Adjustment Method
Specifications
| Model | capacity (kg) |
Stroke (m) |
Wire rope diameter (mm) |
Mass (kg) |
How to adjust spring tension |
Fall arrest device |
Drum lock device |
|---|---|---|---|---|---|---|---|
| EWS-3 | 1.5～3.0 | 1.3 | 3.0 | 1.9 | Worm | 〇 | 〇 |
| EWS-5 | 3.0～5.0 | 1.3 | 3.0 | 2.1 | 〇 | 〇 | |
| EWS-7 | 5.0～7.0 | 1.3 | 3.0 | 2.1 | 〇 | 〇 |
Optional Accessories
Plain trolly
When attached to a beam, this trolley enables smooth horizontal movement by hand.
