ERP Series(Lightweight type )
Catalog Manual/CADFeatures
- Its capacity is 0.3kg-2kg.
- This compact balancer is ideal for suspending lightweight objects.
- This type is equipped with a nylon rope.
- For suspending electric screwdrivers or similar devices.
Gallery

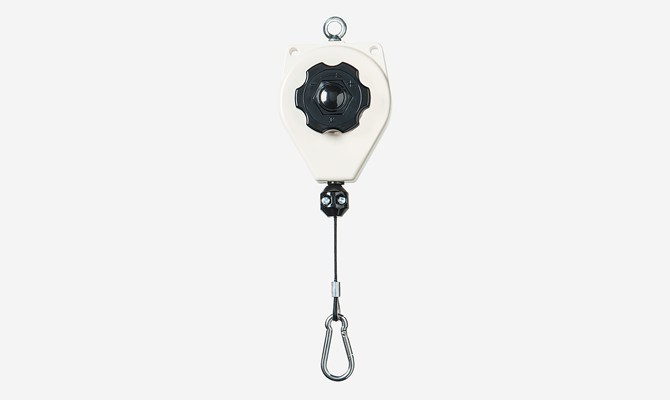

ERP Series

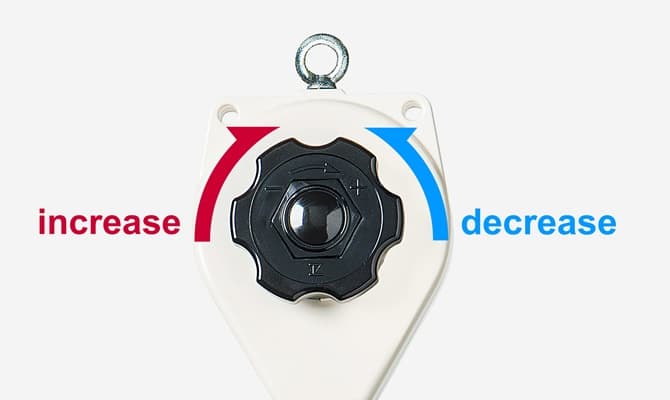

Tension Adjustment
Specifications
| Model | Capacity (kg) |
Stroke (m) |
Wire rope diameter (mm) |
Mass (kg) |
How to adjust spring tension |
Fall arrest device |
Drum lock device |
|---|---|---|---|---|---|---|---|
| ERP-06E | 0.3～0.6 | 1.5 | 2.0 | 0.4 | Handle | － | － |
| ERP-1E | 0.5～1.0 | 1.5 | 2.0 | 0.4 | － | － | |
| ERP-2E | 1.0～2.0 | 1.5 | 2.0 | 0.4 | － | － |
Optional Accessories
Plain trolly
When attached to a beam, this trolley enables smooth horizontal movement by hand.
Plain trolly detail page
