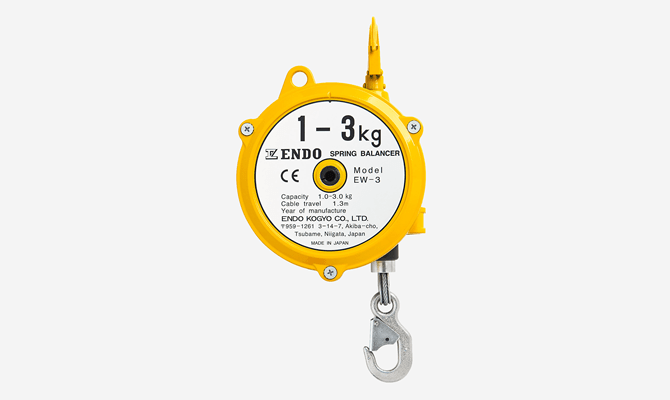

EW Series(Standard lightweight type)

Catalog Manual/CAD
Features
  • Its capacity is 1kg-5kg.
  • This balancer is a standard type that can be used for a broad range of applications.
  • For suspending electrical devices, jigs, tools, and materials for processed goods.
  • Centering operations. Balancing device for various kinds of equipment.
Gallery
Specifications
Model Capacity
(Kg)
Stroke
(m)
Wire rope
diameter
(mm)
Mass
(Kg)

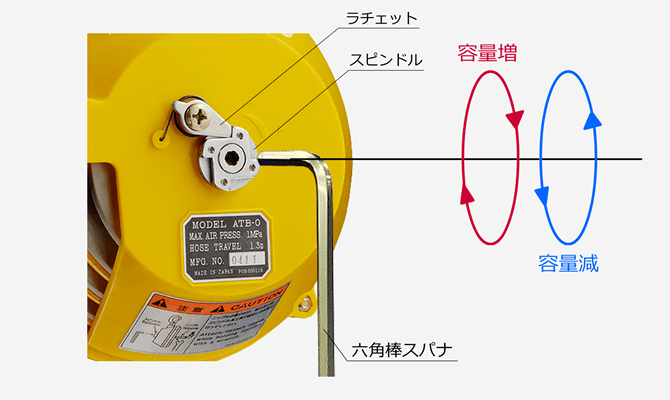

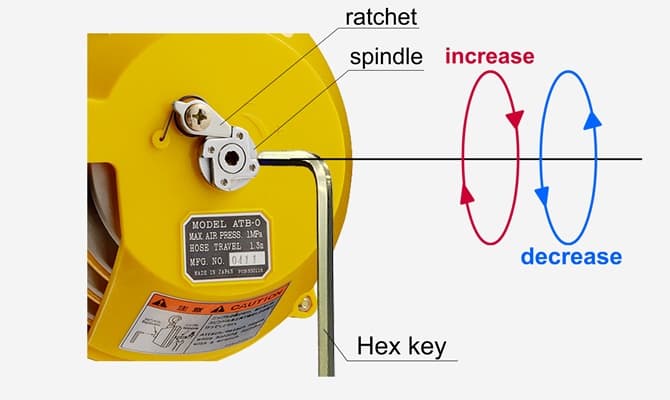

How to
adjust
spring
tension
Fall
arrest
device
Drum lock
device
EW-3 1.0~3.0 1.3 3.0 1.4 Ratchet
EW-5 2.5~5.0 1.3 3.0 1.5
Optional Accessories
plain-trolley
Plain trolly

When attached to a beam, this trolley enables smooth horizontal movement by hand.

Plain trolly detail page
