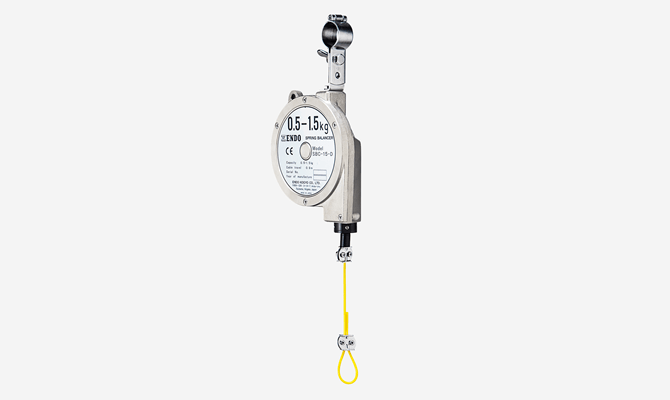

Clean Room Balancer

Catalog / Manual/CAD
Features

The capacity is 0.5kg to 2.5kg.Suitable for the suspension of hand tools used in clean rooms. Compatible with clean room cleanliness class 5 (ISO14644-1) / class 100 (Fed. Std-209E) The sealed Casing prevents dust from scattering. Countermeasure for static electricity The Casing is conductive and can be grounded using an earth wire.

Gallery
Specifications
Model Capacity (kg) Stroke (m) Mass (kg)
SBC-15-D 0.5~1.5 0.9 1.2
SBC-25-D 1.5~2.5 0.9 1.3
