RS Series(End of Sales)
Catalog / Manual/CADFeatures
- Sales of the RS series have been discontinued.
- By adopting a cylindrical drum, the tension (winding force) gradually increases when the wire rope is pulled out.
- Easy to fix with two M5 bolts.
- The BS and RS series have a built-in lever-type tension reduction mechanism that enables accurate tension adjustment.
- Lineup of wire rope (W type) and nylon rope (N type).
Gallery

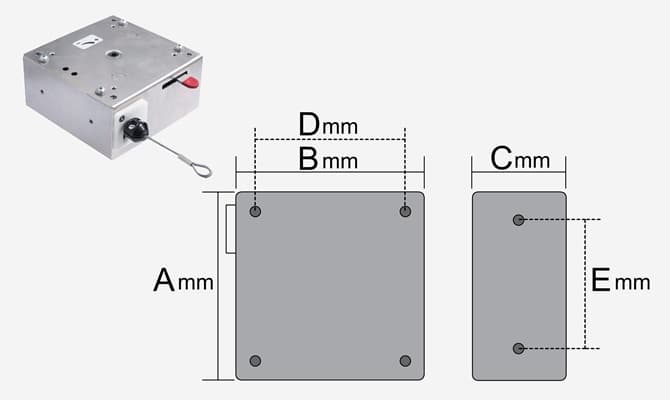

RS Series Dimensions

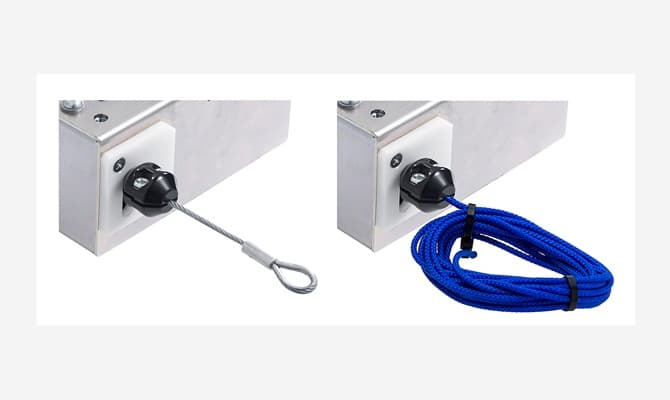

Wire or nylon rope can be selected
Tension Adjustment(Lever)

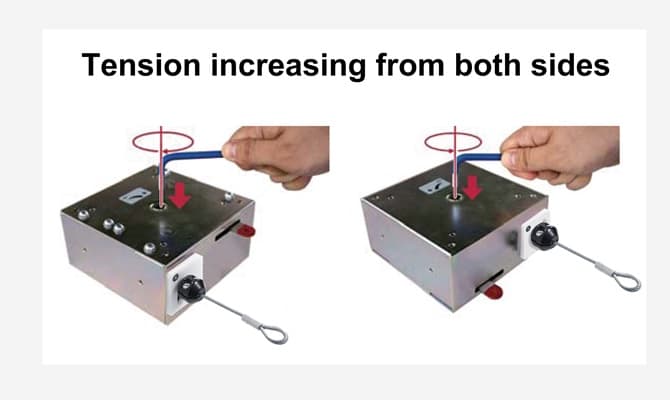

Tension Adjustment (Both Side)
Specifications
| Model | Maximum tension N {Kgf} |
Rope type |
Stroke (m) |
A (mm) |
B (mm) |
C (mm) |
D (mm) |
E (mm) |
|---|---|---|---|---|---|---|---|---|
| RS3W | 29 {3.0} | Wire | 3.0 | 144 | 144 | 73 | 120 | 80 |
| RS5W | 49 {5.0} | |||||||
| RS3N | 29 {3.0} | Nylon | ||||||
| RS5N | 49 {5.0} |
