SBS Series
Catalog / Manual/CADFeatures
- Capacity 1.5kg-5.0kg
- It is one size smaller than the BS series.
- Wire rope (W type) and nylon rope (N type) can be selected
Gallery

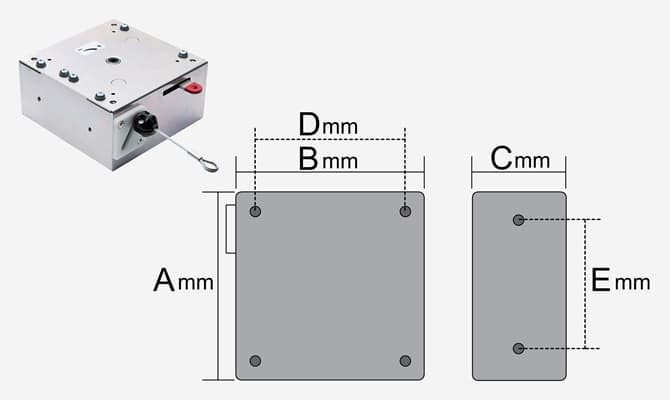

SBS Series Dimensions

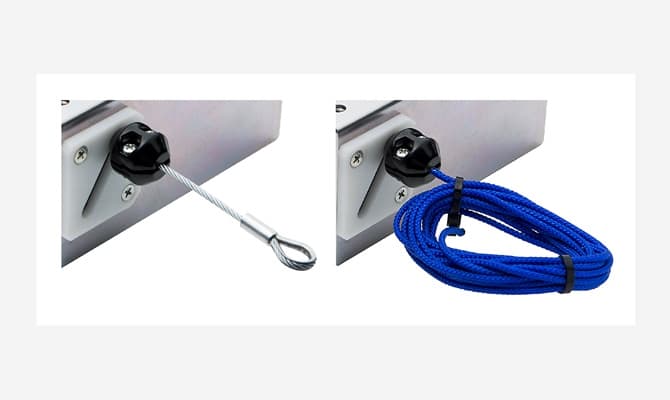

Wire on nylon rope can be selected

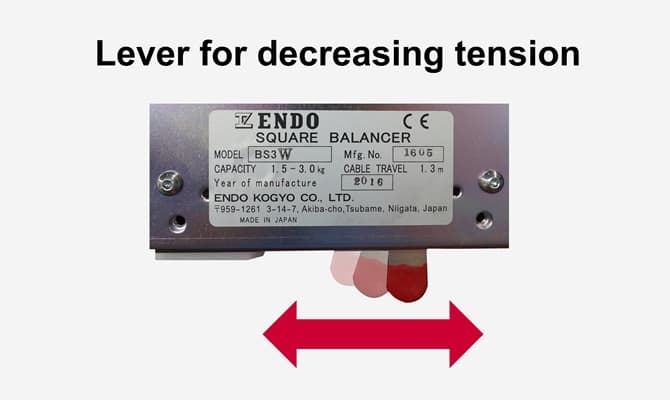

Tension Adjustment(Lever)

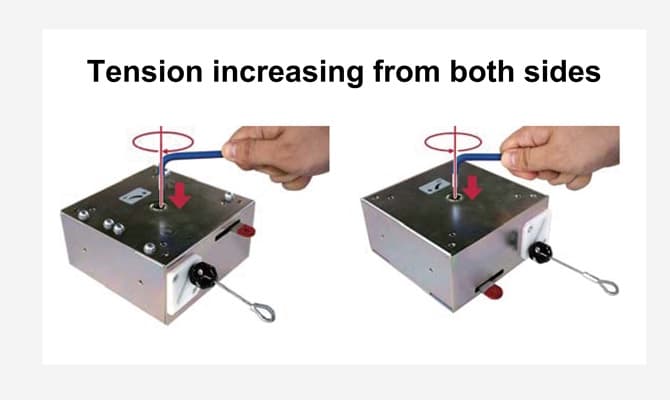

Tension Adjustment (Both Side)
Specifications
| Model | Capacity (kg) |
Rope type |
Stroke (m) |
A (mm) |
B (mm) |
C (mm) |
D (mm) |
E (mm) |
|---|---|---|---|---|---|---|---|---|
| SBS3W | 1.5-3.0 | Wire | 0.5 | 98 | 98 | 57 | 86 | 60 |
| SBS5W | 3.0-5.0 | |||||||
| SBS3N | 1.5-3.0 | Nylon | ||||||
| SBS5N | 3.0-5.0 |
