Air Tool Balancer

Catalog / Manual/CAD
Features

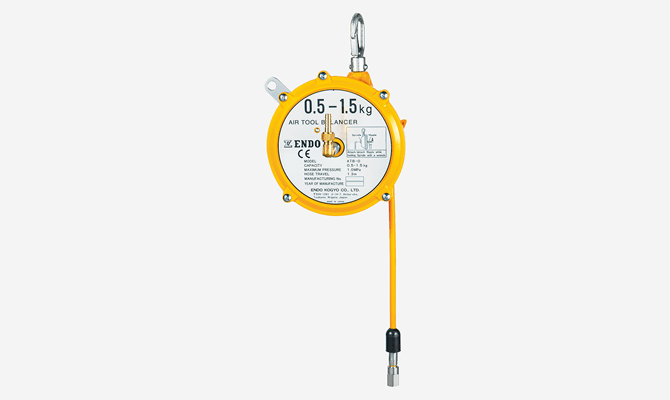

The balance function has been added to the hose reel so you can control the vertical position of air tools and similar equipment effortlessly. The balancer can be used as both a suspension wire and air hose, eliminating untidy difficult to organize tubing. The casing and drum are made of a special synthetic resin and are built to be tough and lightweight. The hose is made of high-quality urethane and is highly durable. The air tube has a diameter of Φ9mm at the inlet portion and an Rc1/4 female union at the outlet portion.

Gallery
Specifications
Model Capacity (kg) Hose travel
(m)
Air inlet.
(φmm)
Mass (kg)
ATB-0 0.5~1.5 1.3 6.3 1.58
ATB-1 1.5~3.0 1.3 6.3 1.66
ATB-2 3.0~5.0 1.3 6.3 1.73
