HKS series
Catalog / Manual/CADFeatures
Capacity is 0.5kg - 2.0kg.This product is suitable for small torque tightening activity on the work bench. Square tube absorbs the torque and built-in spring balancer support
Gallery

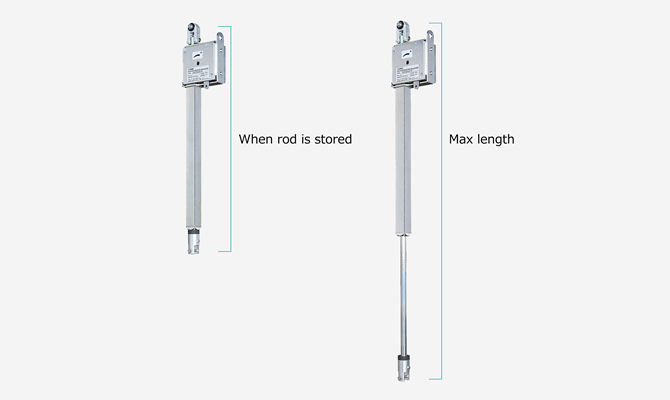

HKS series max length

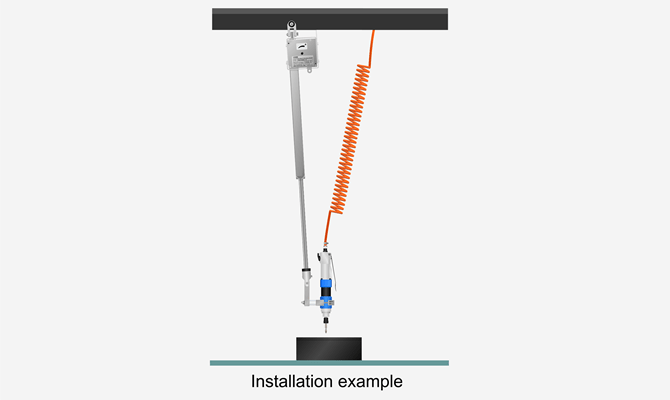

Pistol type tool installation example
Specifications
| Model | Capacity (kg) |
Max tightening torque (N.m) |
Stroke (mm) |
Max length (mm) |
Min length (mm) |
Number of Rod |
Mass (kg) |
|---|---|---|---|---|---|---|---|
| HKS15N900-20 | 0.5～2.0 | 15 | 300 | 892 | 592 | 2 | 2.9 |
| HKS15N1300-18 | 0.5～1.8 | 15 | 500 | 1292 | 792 | 2 | 3.4 |
