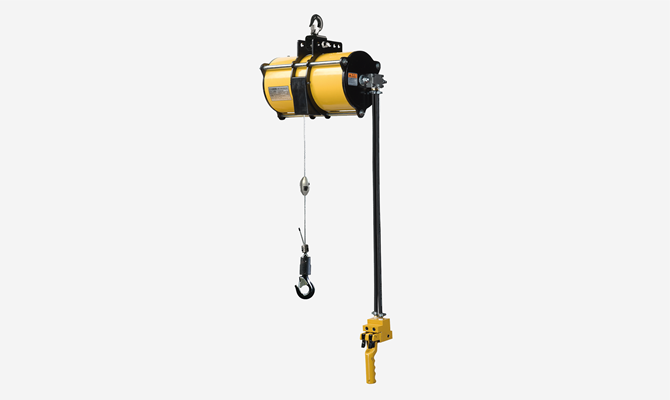

MS/MSS Series

Catalog / Manual/CAD
Fetures
  • Hoisting capacity:0~450kg.
  • Speed control is available using the speed adjustment screw of the pendant switch.
  • With the floating feature, you can raise and lower the suspended load over an approx.
  • 35 cm range from the stop position while holding the load by hand.
Gallery
Control Module Specification
Control module Model Hose Operation Weight
(Kg)
Body
Hoisting MS Straight hose×2 Pendant 2 EHB-50S(C), 50(C), 85(C), 130(C), 270CR
Hoisting MSS Straight hose×2 Pendant 2.2 EHB-2070(C), 450CR
Air Balancer Series (Wire rope)
Model Air
pressure
(MPa)
Max lifting
capacity
(kg)
Stroke
(m)
Weight
(kg)(*)
Cable diameter
(mm)
Air inlet
EHB-50S 0.7 55 0.7 21 φ4.76 Rc 3/8
0.6 48
0.5 40
0.4 32
EHB-50 0.7 55 1.9 28 φ4.76 Rc 3/8
0.6 48
0.5 40
0.4 32
EHB-85 0.7 90 1.9 29 φ4.76 Rc 3/8
0.6 75
0.5 62
0.4 50
EHB-130 0.7 140 1.9 36 φ4.76 Rc 3/8
0.6 120
0.5 100
0.4 80
EHB-270 0.7 270 1.9 43 φ6 Rc 3/8
0.6 230
0.5 190
0.4 150

(*)Weight: Without module

Air Balancer Series (Link chain)
Model Air
pressure
(MPa)
Max lifting
capacity
(kg)
Stroke
(m)
Weight
(kg)(*)
Chain size x Fall Air inlet
EHB-50SC 0.7 55 0.65 20 4.0×1 Rc 3/8
0.6 48
0.5 40
0.4 32
EHB-50C 0.7 55 1.8 29 4.0×1 Rc 3/8
0.6 48
0.5 40
0.4 32
EHB-85C 0.7 90 1.8 30 4.0×1 Rc 3/8
0.6 75
0.5 62
0.4 50
EHB-130C 0.7 140 1.8 37 4.0×1 Rc 3/8
0.6 120
0.5 100
0.4 80
EHB-270C 0.7 270 1.7 44 4.0×1 Rc 3/8
0.6 230
0.5 190
0.4 150
EHB-270CR 0.7 270 0.9 43 4.0 x 2 Rc 3/8
0.6 230
0.5 190
0.4 150
EHB-450CR 0.6 450 0.85 50 4.0 x 2 Rc 3/8
0.5 370
0.4 290

(*)Weight: Without module


Accessories
Rail system
Rail System

This system allows horizontal movement of lifting equipment, enabling easy transportation and transfer by hand.

Rail system detail page
Jib Crane
Jib Crane

A floor-mounted jib crane is available as an accessory. The traveling rail is made of aluminum, enabling light and smooth operation.

Jib crane detail page
