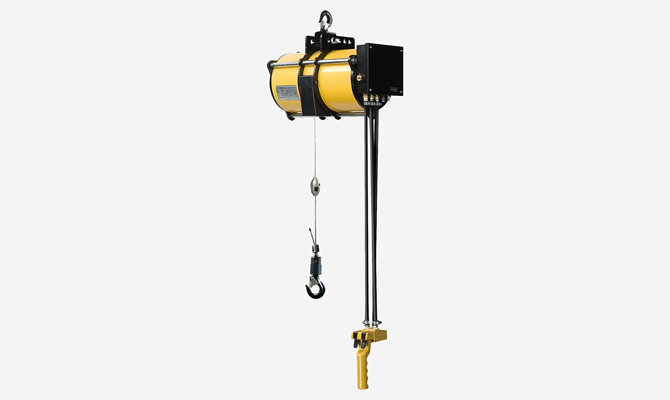

MS-A Series

Fetures
  • Hoisting capacity:0~450kg.
  • Speed control is available using the speed adjustment screw of the lift control module.
  • With the floating feature, you can raise and lower the suspended load over an approx.
  • 35 cm range from the stop position while holding the load by hand.
  • This type is equipped with a fall-arrest device.
  • The device prevents the load from dropping even if the air supply is shut off or the pendant switch hose breaks.
  • Two types of controller are available: pendant type and grip type.
  • With the grip type controller, you can slide the controller up and down while holding the grip.
Gallery
Download
Control Module Specification
Control module Model Hose Operation Weight(Kg) Body
Hoisting MS-A Straight×3 Pendant type 3.5 All model
Hoisting MS-AG Coil hose×3 Grip 5 EHB-50S(C), 50(C), 85(C), 130(C), 270(C)
Air Balancer Series (Wire rope)
Model Air
pressure
(MPa)
Max lifting
capacity
(kg)
Stroke
(m)
Weight
(kg)(*)
Cable diameter
(mm)
Air inlet
EHB-50S 0.7 55 0.7 21 Φ4.76 Rc 3/8
0.6 48
0.5 40
0.4 32
EHB-50 0.7 55 1.9 28 Φ4.76 Rc 3/8
0.6 48
0.5 40
0.4 32
EHB-85 0.7 90 1.9 29 Φ4.76 Rc 3/8
0.6 75
0.5 62
0.4 50
EHB-130 0.7 140 1.9 36 Φ4.76 Rc 3/8
0.6 120
0.5 100
0.4 80
EHB-270 0.7 270 1.9 43 Φ6 Rc 3/8
0.6 230
0.5 190
0.4 150

(*)Weight: Without module

Air Balancer Series (Link chain)
Model Air
pressure
(MPa)
Max lifting
capacity
(kg)
Stroke
(m)
Weight
(kg)(*)
Chain size x Fall Air inlet
EHB-50SC 0.7 55 0.65 20 4.0x1 Rc 3/8
0.6 48
0.5 40
0.4 32
EHB-50C 0.7 55 1.8 29 4.0x1 Rc 3/8
0.6 48
0.5 40
0.4 32
EHB-85C 0.7 90 1.8 30 4.0x1 Rc 3/8
0.6 75
0.5 62
0.4 50
EHB-130C 0.7 140 1.8 37 4.0x1 Rc 3/8
0.6 120
0.5 100
0.4 80
EHB-270C 0.7 270 1.7 44 4.0x1 Rc 3/8
0.6 230
0.5 190
0.4 150
EHB-270CR 0.7 270 0.9 43 4.0x2 Rc 3/8
0.6 230
0.5 190
0.4 150
EHB-450CR
(Only for MS-A)
0.6 450 0.85 50 4.0x2 Rc 3/8
0.5 370
0.4 290

(*)Weight: Without module


Accessories
Rail system
Rail System

This system allows horizontal movement of lifting equipment, enabling easy transportation and transfer by hand.

Rail system detail page
Jib Crane
Jib Crane

A floor-mounted jib crane is available as an accessory. The traveling rail is made of aluminum, enabling light and smooth operation.

Jib crane detail page
