Cable Reel (Spring type)

Catalog Manual/CAD

This reel utilizes the spring tension for winding. When the cable is pulled out, the spring is wound tightly and produces the counterforce that provides the power for winding up the cable. The models with the spring in a drum (Types CRF and CRL) are compact and easy to install.

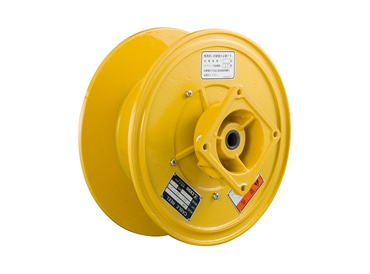

CRF (Compact Type)
CRF (Compact Type)

This compact reel is for indoor use only. This reel is suitable for supplying electricity to a moving device or using in an automated warehouse where the winding length is short. This product is not suitable for specifications for heavy use.

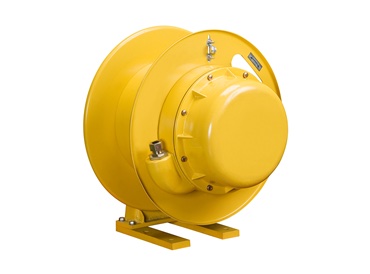

CRL (General Purpose Type)
CRL (General Purpose Type)

This compact reel is for general purposes. This product features a variety of specifications with a wide range of both the drum diameters and winding lengths. It supports the power supply and signal transfer to various types of equipment including moving devices, electric hoists, and lighting devices. A manual type reel can also be produced by adding optional components.

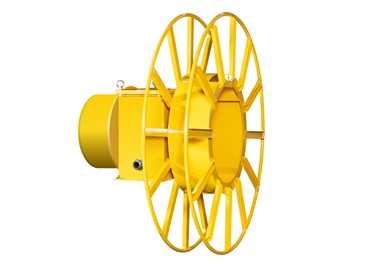

CRE (Large Size)
CRE (Large Size)

This cable reel is particularly suitable for long stroke lengths. This type delivers higher performance for horizontal retrieve and is well suited for gantry cranes and carts with a long traveling distance. The drum, slip ring, and spring parts are separated to facilitate the maintenance and spring replacement.

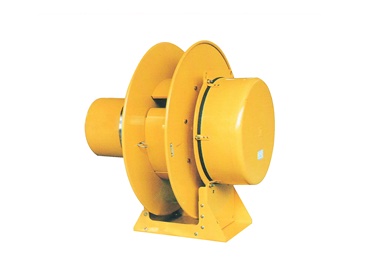

CRH (Dual-end Support Type)
CRH (Dual-end Support Type)

This reel is designed so that the drum can be installed with both sides supported. This shape makes the reel resistant to mechanical vibrations such as the inertial vibration of an overhead crane or the swivel vibration of a boom crane. You can replace the spring or slip ring without disassembling the main body.
