Air Balancer
Inquiry

BC1 Series

Catalog
Fetures
  • Hoisting capacity:0～270kg.
  • This is a single balancing module type.
  • Balance a suspended load that is specified within the range of 0 to the maximum hoisting capacity.
  • Use the regulator on the side of the main equipment to specify the weight of the suspended load and balance the load. You can manually perform a balancing operation over the full range of a stroke.
  • This feature facilitates load-lifting operations.
Gallery

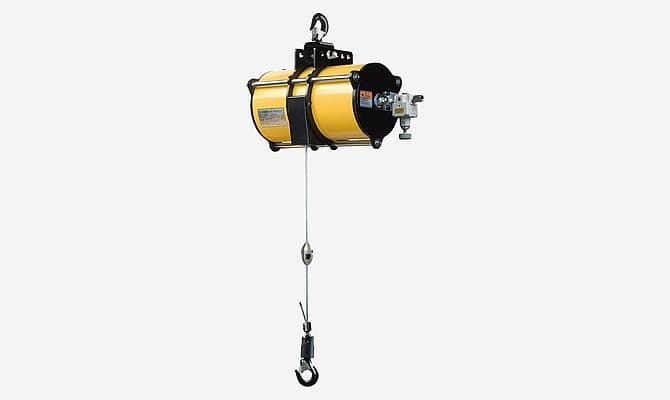

BC1 Module
BC1 Module
Control Module Specification
Control module Model Weight(Kg) Body
Single Balance Module BC1 1 EHB-50S(C), 50(C), 85(C), 130(C), 270CR
Air Balancer Series (Wire rope)
Model Air
pressure
(MPa)		 Max lifting
capacity
(kg)		 Stroke
(m)		 Weight
(kg)(*)		 Cable diameter
(mm) 		Air inlet
EHB-50S 0.7 55 0.7 21 Φ4.76 Rc 1/4
0.6 48
0.5 40
0.4 32
EHB-50 0.7 55 1.9 28 Φ4.76 Rc 1/4
0.6 48
0.5 40
0.4 32
EHB-85 0.7 90 1.9 29 Φ4.76 Rc 1/4
0.6 75
0.5 62
0.4 50
EHB-130 0.7 140 1.9 36 Φ4.76 Rc 1/4
0.6 120
0.5 100
0.4 80

（*）Weight: Without module

Air Balancer Series (Link chain)
Model Air
pressure
(MPa)		 Max lifting
capacity
(kg)		 Stroke
(m)		 Weight
(kg)(*)		 Chain size x Fall
 Air inlet
EHB-50SC 0.7 55 0.65 20 4.0×1 Rc 1/4
0.6 48
0.5 40
0.4 32
EHB-50C 0.7 55 1.8 29 4.0×1 Rc 1/4
0.6 48
0.5 40
0.4 32
EHB-85C 0.7 90 1.8 30 4.0×1 Rc 1/4
0.6 75
0.5 62
0.4 50
EHB-130C 0.7 140 1.8 37 4.0×1 Rc 1/4
0.6 120
0.5 100
0.4 80
EHB-270CR 0.7 270 0.9 43 4.0x2 Rc 1/4
0.6 120
0.5 100
0.4 80

（*）Weight: Without module


Accessories
Rail system
Rail System

This system allows horizontal movement of lifting equipment, enabling easy transportation and transfer by hand.

Rail system detail page
Jib Crane
Jib Crane

A floor-mounted jib crane is available as an accessory. The traveling rail is made of aluminum, enabling light and smooth operation.

Jib crane detail page
