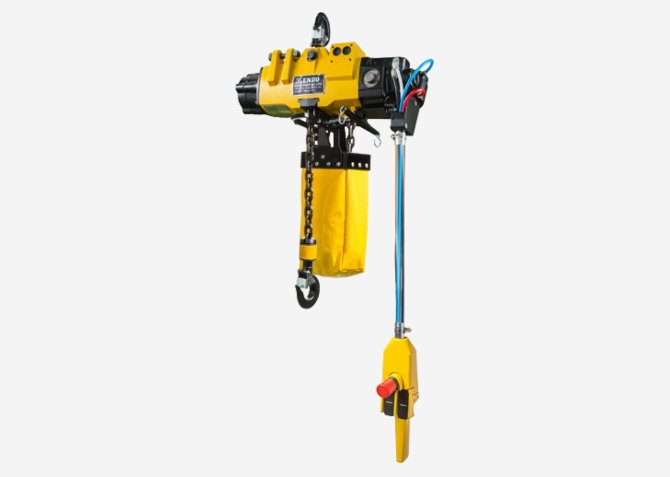

Air Hoist
EHV Series (CE Marked Model)
Features
Its capacity is 250kg-1000kg. This type of Air Hoist is equipped with a surface-hardened load chain that is made of alloy steel and has excellent toughness and wear resistance.
- The load chain is extendable.
- EHV series are equipped with an emergency stop button on the pendant switch as standard.
ATEX class :
II3GD Ex h IIB T4 Gc / Ex h IIIB T135°C Dc
The pull rope control type corresponded with EHV25SP, EHV50SP and EHV100WP. Specifications are same as each model except dimensions and mass.
Gallery
Download
Specifications
| Model | Control | Rated load (kg) |
Stroke (m) |
Air pressure Mpa(kgf/c㎡) |
Lifting speed (m/min) |
Air consumption (m³/min) |
Chain (size x fall) |
Air inlet | Mass (kg) |
|---|---|---|---|---|---|---|---|---|---|
| EHV25SP | Pendant Control |
250 | 3 | 0.4(4) | 12.0 | 0.9 | 6.3×1 | Rp 1/2 | 23.0 |
| 0.5(5) | 16.0 | 1.3 | |||||||
| 0.6(6) | 18.0 | 1.6 | |||||||
| EHV50SP | Pendant Control |
500 | 3 | 0.4(4) | 7.5 | 0.95 | 6.3×1 | Rp 1/2 | 23.0 |
| 0.5(5) | 9.0 | 1.3 | |||||||
| 0.6(6) | 10.5 | 1.65 | |||||||
| EHV98WP | Pendant Control |
980 | 3 | 0.4(4) | 3.7 | 0.95 | 6.3×2 | Rp 1/2 | 29.0 |
| 0.5(5) | 4.5 | 1.3 | |||||||
| 0.6(6) | 5.2 | 1.65 | |||||||
| EHV100WP-OP | Pendant Control |
1000 | 3 | 0.4(4) | 3.7 | 0.95 | 6.3×2 | Rp 1/2 | 31.0 |
| 0.5(5) | 4.5 | 1.3 | |||||||
| 0.6(6) | 5.2 | 1.65 | |||||||
| EHV25SC | Pull rope Control |
250 | 3 | 0.4(4) | 12.0 | 0.9 | 6.3×1 | Rp 1/2 | 21.0 |
| 0.5(5) | 16.0 | 1.3 | |||||||
| 0.6(6) | 18.0 | 1.6 | |||||||
| EHV50SC | Pull rope Control |
500 | 3 | 0.4(4) | 7.5 | 0.95 | 6.3×1 | Rp 1/2 | 21.0 |
| 0.5(5) | 9.0 | 1.3 | |||||||
| 0.6(6) | 10.5 | 1.65 | |||||||
| EHV98WC | Pull rope Control |
980 | 3 | 0.4(4) | 3.7 | 0.95 | 6.3×2 | Rp 1/2 | 27.0 |
| 0.5(5) | 4.5 | 1.3 | |||||||
| 0.6(6) | 5.2 | 1.65 | |||||||
| EHV100WC-OP | Pull rope Control |
1000 | 3 | 0.4(4) | 3.7 | 0.95 | 6.3×2 | Rp 1/2 | 29.0 |
| 0.5(5) | 4.5 | 1.3 | |||||||
| 0.6(6) | 5.2 | 1.65 |
Optional Accessories
Plentrolly
By attaching it to the hanging source, it enables smooth lateral movement manually.
Plentrolly detail page
Air Motor Trolley
This type of trolley is powered by air and transports a suspended load horizontally.
