SPRING BALANCER
Clamp / Rotation clamp
Features

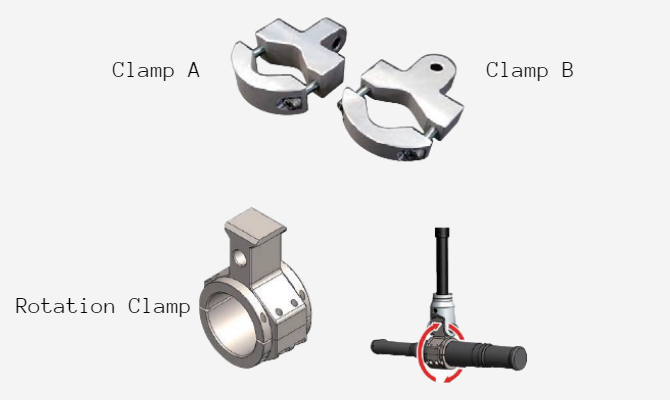

Clamp : This is a clamp for holding tools that is attached to the counter reaction balancer/arm.
Rotation Clamp : This unit expands the tool's range of motion, allowing for greater freedom of movement.
We can also suggest clamps that are optimal for the shape of your tool and how you will be using it.
Please feel free to contact us if you have any questions about clamps that are not listed in our catalog.
Clamp Specification
| Part No. | Description | Applicable model | Range of clamp diameter | Mass (kg) |
|---|---|---|---|---|
| LBP002183 | Clamp A | HKC30N/HKA30N | φ30mm～50mm | 0.2 |
| LBP002184 | Clamp B | 0.2 | ||
| LBP002090 | Clamp A | HKC60N/HKA60N | φ32mm～52mm | 0.4 |
| LBP002091 | Clamp B | 0.3 | ||
| LBP002185 | Clamp A | HKC120N/HKA120N | 0.4 | |
| LBP002186 | Clamp B | 0.4 | ||
| LBP002092 | Clamp A | HKC200N/HKA200N | φ40mm～65mm | 0.8 |
| LBP002093 | Clamp B | |||
| LBP002187 | Clamp A | HKA300N | φ48mm～73mm | 1.1 |
| LBP002188 | Clamp B | 0.9 |
Rotation Clamp Specification
| Part No. | Description | Applicable model | Range of clamp diameter | Mass (kg) |
|---|---|---|---|---|
| LBP002148 | Rotation clamp | HKC60N/HKA60N | φ50mm | 1.0 |
| LBP002149 | Rotation clamp | HKC200N/HKA200N | φ63mm | 1.9 |
