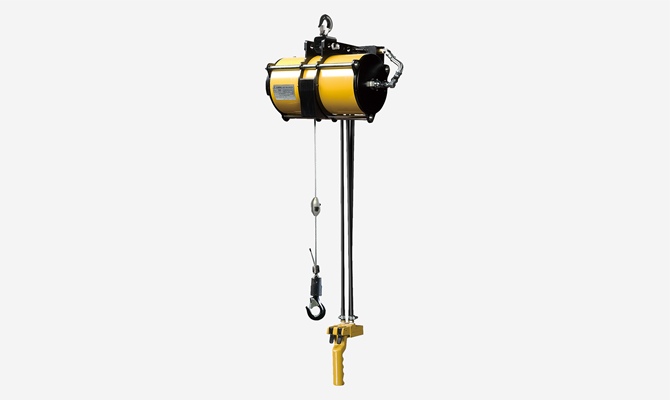

Air Balancer
MSD Series
Fetures
- Hoisting capacity:0～90kg.
- On the main equipment of the Air Balancer, speed control is available using the speed adjustment screw of the control module.
- The built-in brake system eliminates inertial movement of the wire after stopping, and therefore, it can prevent swinging of the load (inertial motion prevention device).
Gallery
MSD Series
Control Module Specification
| Control module | Model | Hose | Operation | Weight (Kg) | Body |
|---|---|---|---|---|---|
| Hoisting | MSD | Straight×3 | Pendant type | 6 | EHB-85D |
Air Balancer Series (Wire rope)
| Model | Air pressure (MPa) |
Max lifting capacity (kg) |
Stroke (m) |
Weight (kg)(*) |
Cable diameter (mm) |
Air inlet |
|---|---|---|---|---|---|---|
| EHB-85D | 0.7 | 90 | 1.9 | 34 | Φ4.76 | Rc 3/8 |
| 0.6 | 75 | |||||
| 0.5 | 62 | |||||
| 0.4 | 50 |
（*）Weight: Without module
Accessories
Rail System
This system allows horizontal movement of lifting equipment, enabling easy transportation and transfer by hand.
Rail system detail page
Jib Crane
A floor-mounted jib crane is available as an accessory. The traveling rail is made of aluminum, enabling light and smooth operation.
Jib crane detail pageInquiry
