Vacuum gripper for Carton
Fetures
- It can lift up cardboard packaging surrounded by PP bands.
- Safety interlock is implemented , so carton is not fallen off if operator push release button when it vaccumes.
- It can handle cardboard weighing up to about 30 kg. *Load capacity varies depending on the conditions of the workpiece.
Gallery
Movie

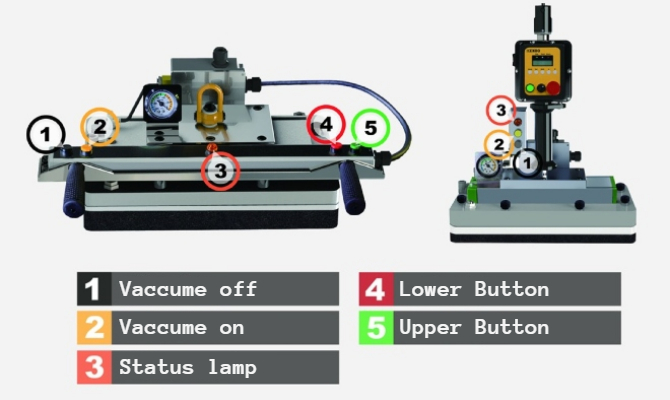

Handle spesification
Specification
| Model | Air pressure (MPa) |
Max lifting capacity (kg) |
Stroke (m) |
Power supply | Air inlet |
|---|---|---|---|---|---|
| EDB-30 | 0.5 | 30 | 1.9 | Single Phase 100V | Rc 1/2 |
Drawing EDBD-30
Accessories
Rail System
This system allows horizontal movement of lifting equipment, enabling easy transportation and transfer by hand.
Rail system detail page
Jib Crane
A floor-mounted jib crane is available as an accessory. The traveling rail is made of aluminum, enabling light and smooth operation.
Jib crane detail pageInquiry
