Self-Lock
SELF-LOCK(For Rigid Body)
Automatic winding is performed by the spring tension and therefore does not require electricity or air. The shock absorber mitigates the impact that is caused when the lock is activated by a falling object. This type is ideal for various types of equipment and wall-mounted robots that are installed in factories as well as sports facilities. It features a robust and simple design and is easy to install. The ratchet mechanism utilizes centrifugal force to lock the wire rope when the speed exceeds the limit. You can release the lock by slackening the wire rope to pull it out again.
Caution*:This product should not be used for the human body.
| Model | Capacity (kg) |
Max. tension (N) |
Wire rope diameter (φ) |
Wire rope length (m) |
Critical speed of lock (m/min) |
Drop* (m) |
Mass (kg) |
|---|---|---|---|---|---|---|---|
| SLG-100A | 30～100 | 39 | 4.4 | 12 | Over 45 | Approx 0.7 | 7.1 |
| SLG-250-6 | 50～250 | 24 | 6.35 | 6 | Over 50 | Approx 1.5 | 15.8 |
| SLG-250-12 | 50～250 | 24 | 6.35 | 12 | Over 50 | Approx 1.5 | 16.9 |
| SLG-500 | 50～500 | 24 | 6.35 | 18.5 | Over 50 | Approx 1.0 | 19.6 |
Gallery

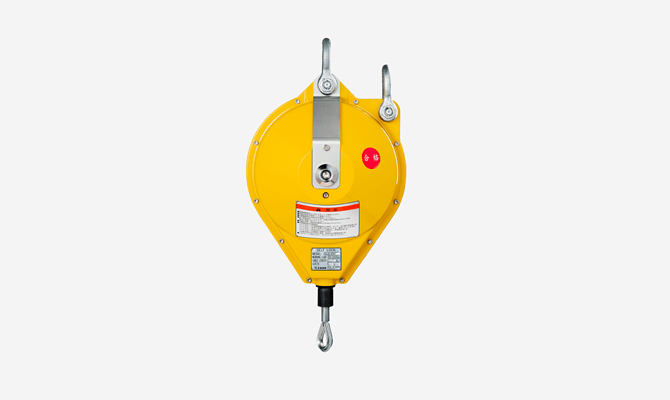

Self-Lock(For rigid Body)
